Our Products

Standard
Customization

Z05

Full Load Displacement
≤ 2.5 Tons
Hull Length
≤ 6.5 Meters

Z07

Full Load Displacement
≤ 3.5 Tons
Hull Length
≤ 8 Meters

Z1

Full Load Displacement
≤ 5 Tons
Hull Length
≤ 9 Meters

Z1.5

Full Load Displacement
≤ 6.5 Tons
Hull Length
≤ 10 Meters

Z2

Full Load Displacement
≤ 8 Tons
Hull Length
≤ 11 Meters

Z2.5

Full Load Displacement
≤ 10 Tons
Hull Length
≤ 12 Meters

Z4

Full Load Displacement
≤ 15 Tons
Hull Length
≤ 14 Meters

Z4.5

Full Load Displacement
≤ 17 Tons
Hull Length
≤ 15 Meters

Z6

Full Load Displacement
≤ 21 Tons
Hull Length
≤ 16 Meters

Z7

Full Load Displacement
≤ 25 Tons
Hull Length
≤ 17 Meters

Z10

Full Load Displacement
≤ 35 Tons
Hull Length
≤ 19 Meters

Z12

Full Load Displacement
≤ 40 Tons
Hull Length
≤ 20 Meters

Z16

Full Load Displacement
≤ 50 Tons
Hull Length
≤ 22 Meters

Z20

Full Load Displacement
≤ 65 Tons
Hull Length
≤ 24 Meters

Z18

Full Load Displacement
≤ 50 Tons
Hull Length
≤ 22 Meters

Z22

Full Load Displacement
≤ 70 Tons
Hull Length
≤ 24 Meters

Z28

Full Load Displacement
≤ 85 Tons
Weight
1680KGS

Z35

Full Load Displacement
≤ 105 Tons
Weight
2020KGS

Z50

Full Load Displacement
≤ 135 Tons
Weight
2580KGS

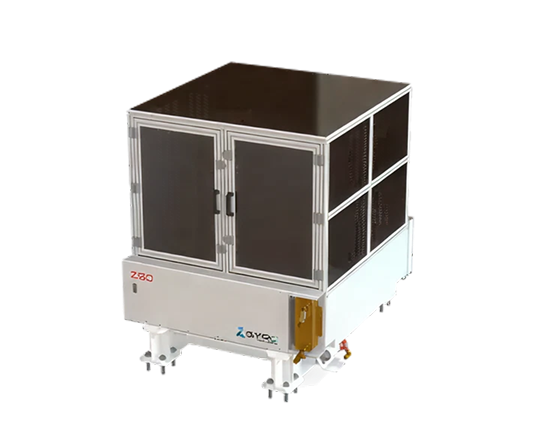

Z80

Full Load Displacement
≤ 205 Tons
Weight
3490KGS

Z110

Full Load Displacement
≤ 280 Tons
Weight
4950KGS

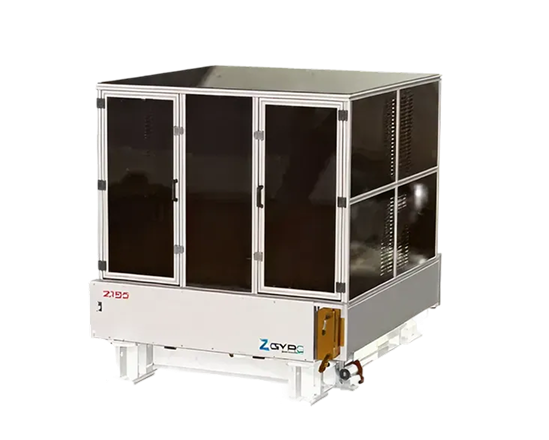

Z150

Full Load Displacement
≤ 375 Tons
Weight
5900KGS

Z200

Full Load Displacement
≤ 500 Tons
Weight
6880KGS

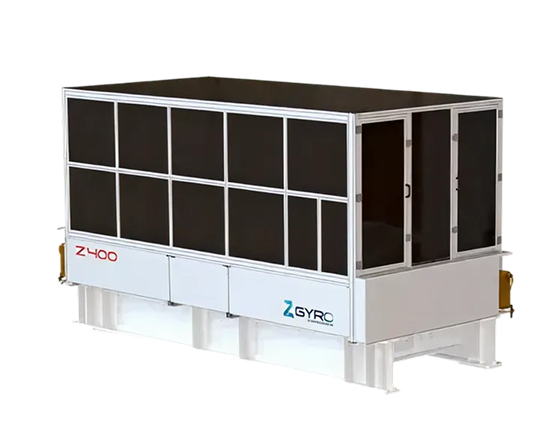

Z400

Full Load Displacement
≤ 900 Tons
Weight
13800KGS

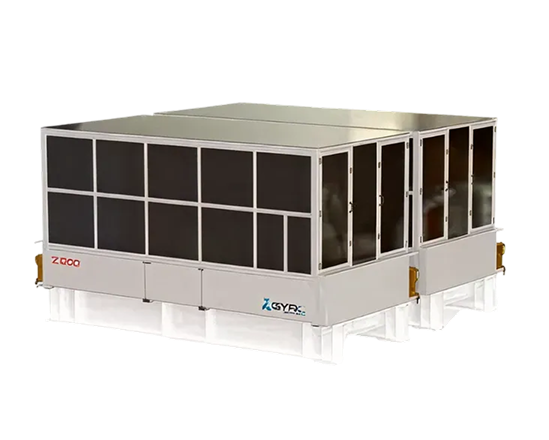

Z800

Full Load Displacement
≤ 1800 Tons
Weight
27600KGS

Z1000

Full Load Displacement
≤ 2100 Tons
Weight
30000KGS
Product Inquiry
X Close

Z05

Hull length
≤ 6.5 Meters
Full Load Displacement
≤ 2.5 Tons
Rated RPM
9900 rpm
Angular Momentum
500 Nms
Anti-rolling Torque
2000 Nm
Time to Rated RPM
20 min
Time to Stablization
10 min
Start-up Power
100～800 W
Operating Power
300～600 W
Power Input
DC12V 1000W
Weight
85KGS
Overall Size (L*W*H)
470*480*420mm
Installation Space (L*W*H)
490*500*460 mm
Cooling Method
Air-cooled
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 68 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z07

Hull length
≤ 8 Meters
Full Load Displacement
≤ 3.5 Tons
Rated RPM
9900 rpm
Angular Momentum
700 Nms
Anti-rolling Torque
2600 Nm
Time to Rated RPM
20 min
Time to Stablization
10 min
Start-up Power
100～900 W
Operating Power
400～700 W
Power Input
DC12V 1200W
Weight
105KGS
Overall Size (L*W*H)
470*480*420mm
Installation Space (L*W*H)
490*500*460 mm
Cooling Method
Air-cooled
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 68 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z1

Hull length
≤ 9 Meters
Full Load Displacement
≤ 5 Tons
Rated RPM
9900 rpm
Angular Momentum
1000 Nms
Anti-rolling Torque
3500 Nm
Time to Rated RPM
20 min
Time to Stablization
10 min
Start-up Power
100～900 W
Operating Power
500～700 W
Power Input
DC12V 1200W
Weight
128KGS
Overall Size (L*W*H)
490*500*430mm
Installation Space (L*W*H)
530*680*470 mm
Cooling Method
Raw Water-cooled 5L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 68 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z1.5

Hull length
≤ 10 Meters
Full Load Displacement
≤ 6.5 Tons
Rated RPM
10800 rpm
Angular Momentum
1500 Nms
Anti-rolling Torque
4500 Nm
Time to Rated RPM
30 min
Time to Stablization
15 min
Start-up Power
100～1000 W
Operating Power
600～800 W
Power Input
DC12V 1500W
Weight
146KGS
Overall Size (L*W*H)
490*500*430mm
Installation Space (L*W*H)
530*680*470 mm
Cooling Method
Raw Water-cooled 5L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 68 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z2.5

Hull length
≤ 12 Meters
Full Load Displacement
≤ 10 Tons
Rated RPM
9600 rpm
Angular Momentum
2500 Nms
Anti-rolling Torque
7500 Nm
Time to Rated RPM
35 min
Time to Stablization
17 min
Start-up Power
200～1400 W
Operating Power
800～1200 W
Power Input
1PH AC220V 1800W
Weight
245KGS
Overall Size (L*W*H)
610*780*590mm
Installation Space (L*W*H)
610*780*590 mm
Cooling Method
Raw Water-cooled 5L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤70 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z4

Hull length
≤ 14 Meters
Full Load Displacement
≤ 15 Tons
Rated RPM
8400 rpm
Angular Momentum
4000 Nms
Anti-rolling Torque
12000 Nm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
200～2200 W
Operating Power
1200～1700 W
Power Input
1PH AC220V 3000W
Weight
310KGS
Overall Size (L*W*H)
640*683*595mm
Installation Space (L*W*H)
680*900*690 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z4.5

Hull length
≤ 14 Meters
Full Load Displacement
≤ 15 Tons
Rated RPM
8400 rpm
Angular Momentum
4000 Nms
Anti-rolling Torque
12000 Nm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
200～2200 W
Operating Power
1200～1700 W
Power Input
1PH AC220V 3000W
Weight
310KGS
Overall Size (L*W*H)
640*683*595mm
Installation Space (L*W*H)
680*900*690 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z6

Hull length
≤ 16 Meters
Full Load Displacement
≤ 21 Tons
Rated RPM
7800 rpm
Angular Momentum
6000 Nms
Anti-rolling Torque
18000 Nm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
200～2800 W
Operating Power
1400～2200 W
Power Input
1PH AC220V 3500W
Weight
460KGS
Overall Size (L*W*H)
760*805*690mm
Installation Space (L*W*H)
800*1020*800 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z7

Hull length
≤ 17 Meters
Full Load Displacement
≤ 25 Tons
Rated RPM
7800 rpm
Angular Momentum
7000 Nms
Anti-rolling Torque
21000 Nm
Time to Rated RPM
50 min
Time to Stablization
25 min
Start-up Power
200～2800 W
Operating Power
1500～2400 W
Power Input
1PH AC220V 3500W
Weight
510KGS
Overall Size (L*W*H)
760*805*690mm
Installation Space (L*W*H)
800*1020*800 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z10

Hull length
≤ 19 Meters
Full Load Displacement
≤ 35 Tons
Rated RPM
6600 rpm
Angular Momentum
10000 Nms
Anti-rolling Torque
30000 Nm
Time to Rated RPM
45 min
Time to Stablization
22 min
Start-up Power
200～3500 W
Operating Power
1800～2800 W
Power Input
1PH AC220V 4000W
Weight
690KGS
Overall Size (L*W*H)
880*930*780mm
Installation Space (L*W*H)
920*1150*930 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z12

Hull length
≤ 20 Meters
Full Load Displacement
≤ 40 Tons
Rated RPM
6600 rpm
Angular Momentum
12000 Nms
Anti-rolling Torque
36000 Nm
Time to Rated RPM
50 min
Time to Stablization
25 min
Start-up Power
200～3500 W
Operating Power
2000～3000 W
Power Input
1PH AC220V 4000W
Weight
790KGS
Overall Size (L*W*H)
880*930*780mm
Installation Space (L*W*H)
920*1150*930 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z16

Hull length
≤ 21 Meters
Full Load Displacement
≤ 50 Tons
Rated RPM
5700 rpm
Angular Momentum
16000 Nms
Anti-rolling Torque
48000 Nm
Time to Rated RPM
50 min
Time to Stablization
25 min
Start-up Power
200～4000 W
Operating Power
2500～3500 W
Power Input
3PH AC380V 5000W
Weight
990KGS
Overall Size (L*W*H)
960*1070*890 mm
Installation Space (L*W*H)
1000*1390*1090 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z20

Hull length
≤ 24 Meters
Full Load Displacement
≤ 65 Tons
Rated RPM
5100 rpm
Angular Momentum
20000 Nms
Anti-rolling Torque
60000 Nm
Time to Rated RPM
50 min
Time to Stablization
27 min
Start-up Power
200～4500 W
Operating Power
3000～4000 W
Power Input
3PH AC380V 5000W
Weight
1200KGS
Overall Size (L*W*H)
980*1204*900mm
Installation Space (L*W*H)
1020*1650*1100 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z18

Hull length
≤ 22 Meters
Full Load Displacement
≤ 55 Tons
Rated RPM
3600 rpm
Angular Momentum
18000 Nms
Anti-rolling Torque
54000 Nm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
400～5000 W
Operating Power
2500～4000 W
Power Input
3PH AC380V 5000W
Weight
1230KGS
Overall Size (L*W*H)
1050*1300*1200 mm
Installation Space (L*W*H)
1250*1700*1300 mm
Cooling Method
Raw Water-cooled 10L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z22

Full Load Displacement
≤ 70 Tons
Rated RPM
3600 rpm
Angular Momentum
22 kNms
Anti-rolling Torque
66000 Nm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.4~6 kW
Operating Power
2.5~4.5 kW
Power Input
3PH AC380V6.5 kW
Weight
1350kg
Overall Size (L*W*H)
1050*1300*1200 mm
Installation Space (L*W*H)
250*1700*1300 mm
Cooling Method
Water cooling 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤72 dB
Protection Rating
IP66
Control Panel
7-inch Touch Screen
Product Inquiry
X Close

Z28

Full Load Displacement
≤ 85 Tons
Rated RPM
3150 rpm
Angular Momentum
28 kNms
Anti-rolling Torque
84 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.4～9 kW
Operating Power
5～8 kW
Power Input
3PH AC380V9 kW
Weight
1680kg
Overall Size (L*W*H)
1150*1450*1300 mm
Installation Space (L*W*H)
1350*2300*1440 mm
Cooling Method
Water cooling 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 73 dB
Protection Rating
IP65
Control Panel
7-inch Touch Screen
Product Inquiry
X Close

Z35

Full Load Displacement
≤ 105 Tons
Rated RPM
3000 rpm
Angular Momentum
35 kNms
Anti-rolling Torque
105 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.4～12 kW
Operating Power
7～11 kW
Power Input
3PH AC380V 12 kW
Weight
2020KGS
Overall Size (L*W*H)
1150*1500*1340mm
Installation Space (L*W*H)
1350*2300*1440 mm
Cooling Method
Raw Water-cooled 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 73 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z50

Full Load Displacement
≤ 135 Tons
Rated RPM
2850 rpm
Angular Momentum
50 kNms
Anti-rolling Torque
150 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.4～15 kW
Operating Power
8～13 kW
Power Input
3PH AC380V 15 kW
Weight
2580KGS
Overall Size (L*W*H)
1250*1600*1440mm
Installation Space (L*W*H)
1450*2400*1540 mm
Cooling Method
Raw Water-cooled 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 73 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z80

Full Load Displacement
≤ 205 Tons
Rated RPM
2500 rpm
Angular Momentum
80 kNms
Anti-rolling Torque
240 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.4～18 kW
Operating Power
11～16 kW
Power Input
3PH AC380V 18 kW
Weight
3490KGS
Overall Size (L*W*H)
1370*1690*1570mm
Installation Space (L*W*H)
1570*2490*1670 mm
Cooling Method
Raw Water-cooled 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 73 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z110

Full Load Displacement
≤ 280Tons
Rated RPM
2100 rpm
Angular Momentum
110 kNms
Anti-rolling Torque
330 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.4～24 kW
Operating Power
12～20 kW
Power Input
3PH AC380V 24 kW
Weight
4950KGS
Overall Size (L*W*H)
1600*1980*1720mm
Installation Space (L*W*H)
1800*2780*1820 mm
Cooling Method
Raw Water-cooled 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 74 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z150

Full Load Displacement
≤ 375 Tons
Rated RPM
1800 rpm
Angular Momentum
150 kNms
Anti-rolling Torque
450 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.5～28 kW
Operating Power
14～22 kW
Power Input
3PH AC380V 28 kW
Weight
5900KGS
Overall Size (L*W*H)
1750*2150*1870mm
Installation Space (L*W*H)
1950*2950*1970 mm
Cooling Method
Raw Water-cooled 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 74 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z200

Full Load Displacement
≤ 500 Tons
Rated RPM
1800 rpm
Angular Momentum
200 kNms
Anti-rolling Torque
600 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
0.5～30 kW
Operating Power
15～23 kW
Power Input
3PH AC380V 30 kW
Weight
6880KGS
Overall Size (L*W*H)
1750*2150*1920mm
Installation Space (L*W*H)
1950*2950*2020 mm
Cooling Method
Raw Water-cooled 15L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 74 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z400

Full Load Displacement
≤ 900 Tons
Rated RPM
1800 rpm
Angular Momentum
400 kNms
Anti-rolling Torque
1200 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
1～60 kW
Operating Power
30～46 kW
Power Input
3PH AC380V 60 kW
Weight
13800KGS
Overall Size (L*W*H)
1750*4000*1970mm
Installation Space (L*W*H)
2750*5000*2070 mm
Cooling Method
Raw Water-cooled 30L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 75 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z800

Full Load Displacement
≤ 1800 Tons
Rated RPM
1800 rpm
Angular Momentum
800 kNms
Anti-rolling Torque
2400 kNm
Time to Rated RPM
40 min
Time to Stablization
20 min
Start-up Power
2～120 kW
Operating Power
60～92 kW
Power Input
3PH AC380V 120 kW
Weight
27600KGS
Overall Size (L*W*H)
3700*4000*1970mm
Installation Space (L*W*H)
4700*5000*2070 mm
Cooling Method
Raw Water-cooled 60L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 75 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen
Product Inquiry
X Close

Z1000

Full Load Displacement
≤ 2100 Tons
Rated RPM
1800 rpm
Angular Momentum
1000 kNms
Anti-rolling Torque
2800 kNm
Time to Rated RPM
50 min
Time to Stablization
25 min
Start-up Power
2～150 kW
Operating Power
70～110 kW
Power Input
3PH AC380V 120 kW
Weight
30000KGS
Overall Size (L*W*H)
3700*4000*2020mm
Installation Space (L*W*H)
4700*5000*2120 mm
Cooling Method
Raw Water-cooled 60L/min
Ambient Temperature
-20℃～60℃
Noise Output @ 1 meter
≤ 75 dB
Protection Rating
IP65
Control Panel
5-inch Touch Screen

Why Zgyro

The Perfect stabilization for small boats

1
Innovative Architecture

Our patented mechatronic torque control system is hydraulic components-free, known for its robustness and durability. it minimizes failures and offers easy maintenance.

2
Exceptional Stabilization Performance

It detects boat posture and adaptively controls it. This ensures superior stabilization in unpredictable waves, reduce up to 96% of the boat roll.

3
Advanced Triple Buffer Protection

Combining mechanical, electromagnetic and electronic buffering, the system is designed to withstand impacts, ensuring reliability even in the most challenging sea conditions.

Perfect solution for small boats

Choose a product

WHICH MODEL SIZE IS RIGHT FOR YOU?

No one knows more about how you boat than you!
Please contact us and we will guide you to choose the right model for you!

Contact us
